Modular Cleanroom Solutions
Modular cleanroom
The pre-assembled controlled-environment unit reorganizes site-installed functional systems into standardized, high-load-bearing modular sections, combining multiple operational features into a single integrated solution for reliable, repeatable performance.
Request a Free Quote
Modular Clean Room: Engineered for Precision, Built for Malaysia's Demanding Industries
For engineering teams across Malaysia's high-stakes manufacturing and research sectors — from semiconductor labs in Kulim and Penang to biologics labs in Cyberjaya, aerospace component facilities in Subang, and EV battery assembly plants in Johor — selecting the right modular clean rooms isn't just about compliance. It's about operational resilience, rapid deployment, lifecycle cost control, and seamless integration with existing infrastructure. Our modular clean room manufacturers design and deliver turnkey solutions rooted in ASEAN-specific environmental conditions (high humidity, tropical corrosion risks) and global GMP / ISO 14644-1 standards.
We are a trusted Malaysia cleanroom manufacturer with over 12 years of regional project execution — from ISO Class 5 microelectronics cleanrooms to ISO Class 7 pharmaceutical isolators and ISO Class 8 automotive paint-prep enclosures. Unlike generic prefabricated vendors, our systems are engineered for performance: non-shedding surfaces, electrostatic-dissipative options, fire-rated integrity (up to 120-min), and validated air-tightness (< 0.05 ACH leakage at 25 Pa). Central to this capability is our in-house production of high-performance wall systems — including certified hpl panels manufacturers delivering HPL-faced sandwich panels with antimicrobial PVC edges, zero-VOC adhesives, and Class A fire rating (EN 13501-1). These form the backbone of our Malaysia clean room wall panels, Malaysia Cleanroom wall panels and modular clean room wall panels — all fabricated to ±0.3 mm tolerance and pre-gasketed for repeatable sealing.
As your dedicated modular clean room supplier, we support full-scope delivery: structural framing, wall / ceiling systems, integrated lighting & power, HEPA/ULPA filtration modules, interlocked access controls, and validation-ready documentation. We also supply complementary Malaysia Cleanroom equipment — pass-through chambers, laminar flow hoods, and stainless steel utility booms — ensuring system-level coherence. Whether you require modular clean room partitions for lab zoning or full Malaysia prefabricated cleanrooms with HVAC integration, our Malaysia modular cleanroom systems are factory-assembled, site-tested, and commissioned within 4–8 weeks — up to 60% faster than traditional builds.
Modular Cleanroom Specifications
Standard configuration for the Wonclean modular cleanroom. Core, facing, thickness and frame are all customizable to project and cleanroom classification requirements.
| Panel core | PIR/PUR rigid foam (24–40 kg/m³), non-halogenated (mineral wool / honeycomb options) |
|---|---|
| Face sheets | 0.5 mm pre-laminated HPL (1.0 mm total), EN 438-3 (316L SS / aluminum / steel options) |
| Fire rating | EN 13501-1 Class B-s1,d0 (A2-s1,d0 / ASTM E84 Class A options) · up to 120 min |
| Wall thickness | 100 mm standard / 150 mm HVAC-integrated (200 mm acoustic option) |
| Air leakage | ≤ 0.05 ACH @ 25 Pa (≤ 0.02 ACH sealed-joint option) |
| Surface finish | HPL matte antimicrobial (ISO 22196:2011) (ESD 10⁶–10⁹ Ω/sq option) |
| Structural frame | Aluminum 6063-T5 anodized (15µm), boltless cam-lock (SS304 option) |
| Tolerance | ± 0.3 mm panel fabrication, pre-gasketed |
| Deployment | 4–8 weeks, ~60% faster than traditional |
| Warranty | 10-year structural warranty |
| Compliance | ISO 9001/14001 · SIRIM QAS · CE (USP <797>/<800> options) |
Values shown are standard/representative configurations. Confirm final certified figures (fire test, air-tightness) against the project datasheet before specification — Wonclean issues a stamped datasheet with every quotation.

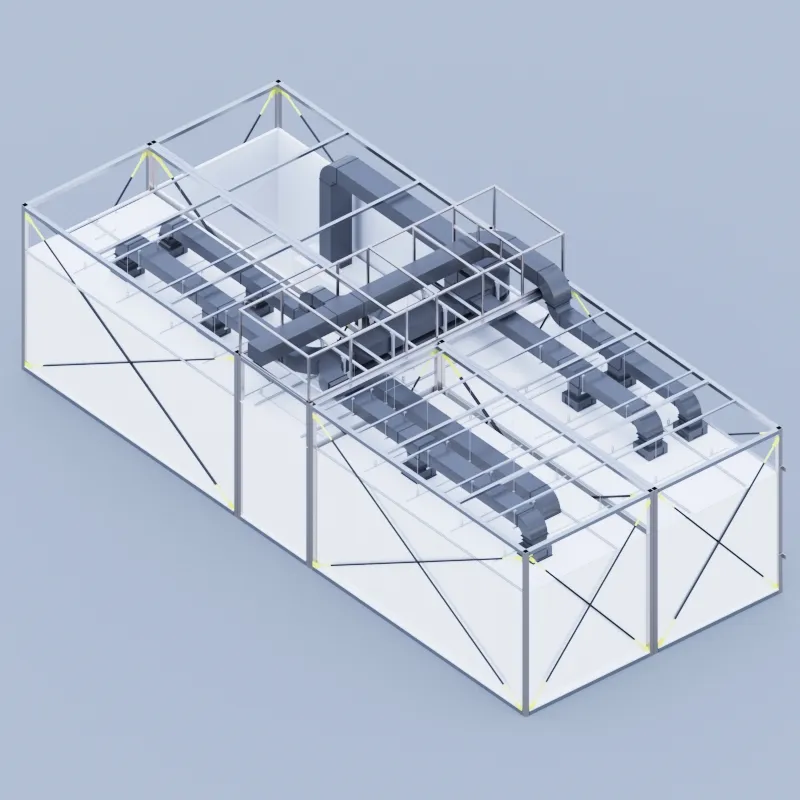

Modular Cleanroom Construction
HPL-faced sandwich panels on a boltless aluminum frame are the engineering secret. Panels are fabricated to ±0.3 mm tolerance and pre-gasketed for repeatable sealing, with antimicrobial PVC edges and zero-VOC adhesives — delivering validated air-tightness below 0.05 ACH.
Why Choose Our Modular Cleanroom
60% faster deployment
Factory-assembled and site-commissioned in 4–8 weeks versus traditional construction.
Validated air-tightness
< 0.05 ACH leakage at 25 Pa with pre-gasketed, repeatable sealing.
120-minute fire integrity
Fire-rated integrity up to 120 minutes with B-s1,d0 to Class A core options.
Non-shedding & ESD
Antimicrobial HPL surfaces with electrostatic-dissipative options for sensitive processes.
Full-scope delivery
Includes HEPA/ULPA filtration, lighting, power and access controls as one package.
10-year warranty
Boltless aluminum framing and tight tolerances backed by a 10-year structural warranty.
Modular Cleanroom Applications
Deployed as complete modular cleanrooms across regulated and high-precision industries. See real cleanroom project case studies or browse the full cleanroom product range.
Get a project-specific quote in 24 hours
Send your cleanroom classification, floor area and finish requirements. Our Malaysia-based engineering team replies with a stamped datasheet, fire certificate and pricing — 7×24 technical support by email, phone or WhatsApp.
Request a Free Quote Chat on WhatsApp
