Cleanroom concealed bar ceiling system
Overview:

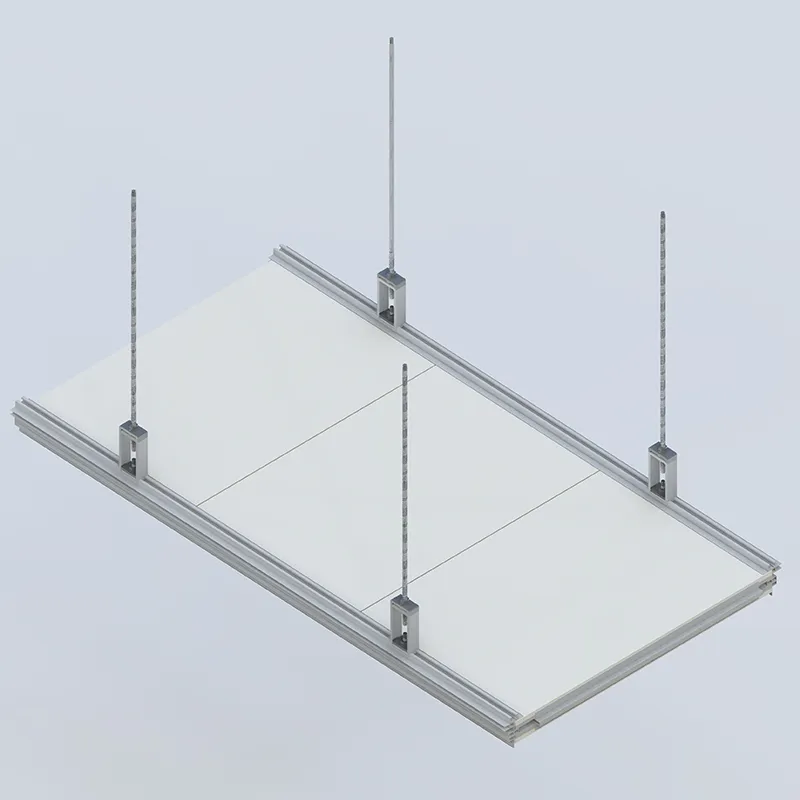

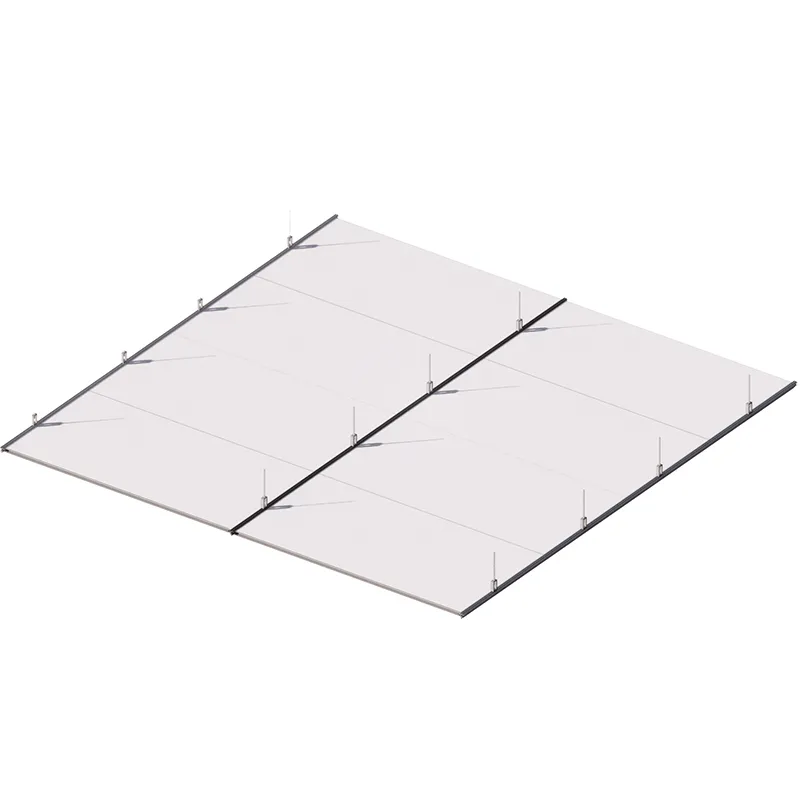

The hiding bar ceiling system, under the indoor ceiling, can’t see the T-bar ceiling, Only the ceiling can be seen in turn, the suspension depends on the connection between the hidden bar ceiling and the ceiling to achieve the weight-bearing effect.
Hots Tag:
DETAIL:
Cleanroom concealed bar ceiling system: Precision-engineered for Malaysia’s high-integrity industries
For engineering teams across Malaysia’s semiconductor fabs, biopharma labs, aerospace assembly zones, precision optics facilities, food-grade production lines, automotive electronics plants, and next-generation data centers — ceiling integrity is never just about aesthetics. It’s about airflow continuity, particle containment, service integration, and long-term maintainability. The Cleanroom concealed bar ceiling system delivers exactly that: a seamless, flush-mounted ceiling solution where structural support bars are fully hidden behind high-performance panels — eliminating ledges, reducing cleaning complexity, and supporting ISO Class 3–8 environments without compromise.
Developed and manufactured locally by a trusted Malaysia clean room wall panels supplier, this system is part of our integrated portfolio of prefabricated modular cleanrooms. As a certified Malaysia cleanroom manufacturer, we design, fabricate, and commission turnkey solutions — from concept to commissioning — aligned with MS 1080, ISO 14644, and client-specific GMP or SEMI standards. Whether you require rapid deployment for a new wafer probe station or reconfiguration of an existing biologics fill-finish suite, our Malaysia prefabricated cleanrooms and Malaysia modular cleanroom systems integrate seamlessly with your facility’s MEP strategy and operational timeline.
Product Overview: Refined Integration, Proven Performance

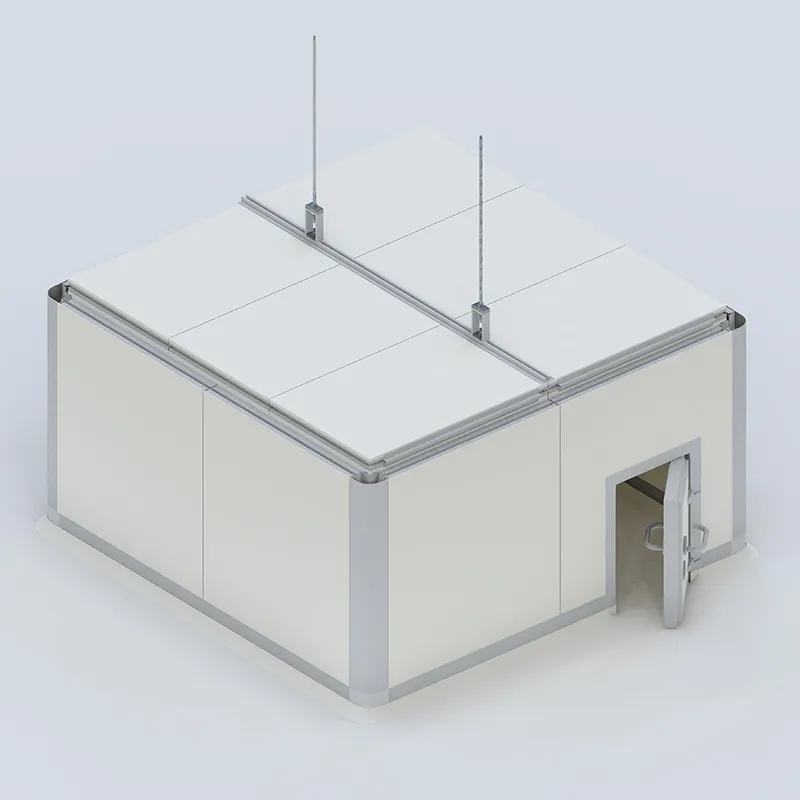

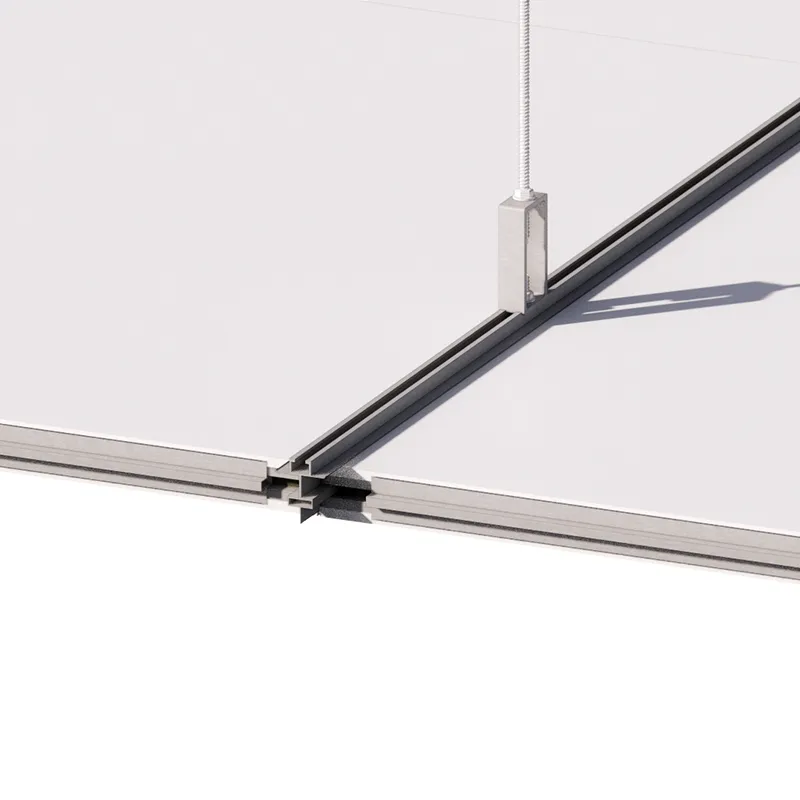

The core innovation lies in the Hiding bar ceiling architecture: extruded aluminium T-bar carriers are recessed into the ceiling grid and capped with non-removable, interlocking panels — ensuring zero protrusion above the finished plane. This eliminates dust traps and simplifies HEPA filter gasketing. Unlike exposed-grid systems, the Hiding bar ceiling of cleanroom maintains uninterrupted laminar flow paths and supports full-height wall-to-wall integration with our Malaysia clean room wall panels.
Two primary panel options serve distinct application needs: standard HPL-faced panels and custom-engineered alternatives. Our hpl ceiling variant uses 12–18 mm fire-rated High-Pressure Laminate bonded to aluminium honeycomb or MDF cores — offering exceptional flatness (±0.2 mm/m), low particle shedding, and resistance to cleaning agents (IPA, hydrogen peroxide vapour, quaternary ammonium). The HPL ceiling Design allows for seamless transitions around FFUs, light fixtures, sensors, and sprinkler heads — all pre-cut and pre-drilled at our HPL ceiling Factory in Johor Bahru. For mission-critical zones, the hpl ceiling of clean room can be upgraded with antimicrobial surface treatment or electrostatic-dissipative (ESD) coating (10⁶–10⁹ Ω/sq).
This isn’t a generic off-the-shelf ceiling. It’s a purpose-built component of a holistic environment — engineered alongside our prefabricated modular cleanrooms, validated for vibration control in optical metrology bays, thermally stable for EUV lithography support areas, and compliant with halogen-free requirements for battery cell manufacturing clean zones.
Technical Specifications & Material Compliance
| Parameter | Standard Specification | Optional / Custom |
|---|---|---|
| Panel Thickness | 12 mm (HPL on aluminium honeycomb) | 15 mm or 18 mm; MDF core for acoustic zones |
| Surface Finish | hpl ceiling panels with matte, anti-glare finish (RAL/NCS matched) | Antimicrobial, ESD, or conductive coating |
| Fire Rating | BS 476 Part 7 Class 1 / EN 13501-1 B-s1,d0 | A2-s1,d0 (non-combustible core option) |
| Flatness Tolerance | ≤ 0.2 mm per metre | ≤ 0.1 mm per metre (optical-grade) |
| Load Capacity (uniform) | 25 kg/m² (static) | 50 kg/m² (service-heavy zones) |
| Joint System | Tongue-and-groove + silicone-sealed perimeter | Gasketed metal edge for ultra-low leakage (<0.05% @ 250 Pa) |
| Grid Compatibility | Standard 600 × 600 mm or 1200 × 600 mm module | Custom spacing (e.g., 900 × 900 mm for large FFU arrays) |
Real-World Deployment Across Malaysian Industry Sectors
In Penang’s semiconductor packaging facilities, the Hiding bar ceiling Design enables rapid re-zoning during process upgrades — panels lift cleanly without disturbing adjacent FFUs or ductwork. At a Selangor-based vaccine fill-finish line, the hpl ceiling of clean room passed stringent particle challenge testing (≤1 particle/ft³ @ 0.5 µm) while accommodating 100+ integrated sensors and VHP-compatible lighting. For an East Coast EV battery dry room, our Hiding bar ceiling Factory delivered panels with moisture-resistant core and humidity-stable HPL — achieving ≤1% RH variation across 1,200 m².
Our Malaysia modular cleanroom systems are designed for interoperability: ceiling grids align precisely with wall stud spacing, allowing single-source accountability from foundation anchor to ceiling finish. And because every HPL ceiling Factory batch is traceable to raw material lot and environmental test records, compliance documentation — including material SDS, fire reports, and particulate shedding data — ships with every order.
Whether you’re specifying for a new 300mm fab extension, retrofitting a legacy biotech lab, or scaling clean space for autonomous vehicle sensor calibration, the Cleanroom concealed bar ceiling system delivers measurable ROI: reduced cleaning labour by up to 35%, lower filter replacement frequency, and zero unplanned downtime due to ceiling-related contamination events.
Partner with a proven Malaysia cleanroom manufacturer — not just a supplier. Let us engineer your ceiling as infrastructure, not decoration.
